2.3.2 Structure Element: Record

The Record element defines a line of data in a file. Record has the following attributes:

Attribute Name	Description	Required
ignoreOnRead	True/False. ``False'' indicates that moving to the next line is required before performing the operations contained in the Record. When writing, a new line will always be created before performing operations	yes
format	The format statement that should be used on the record. Can be a parameter that specifies the format statement or the format statement itself	no
ignoreFormatOnRead	True/False. ``True'' ignores the specified format and reads values as encountered	no

A Record element must contain one or more structure elements such as Condition or Loop, or operation elements such as Separator, SetValue, SetSize, SetDims, or AddValue in any order.

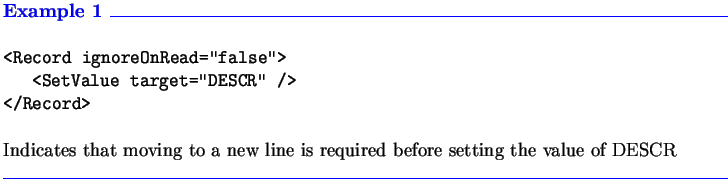

$\parbox{6.3in}{\textcolor{blue} {\textbf{Example 1 \hrulefill}}\\ \... ...is required before setting the value of DESCR \\ \textcolor{blue}{\hrulefill}}$

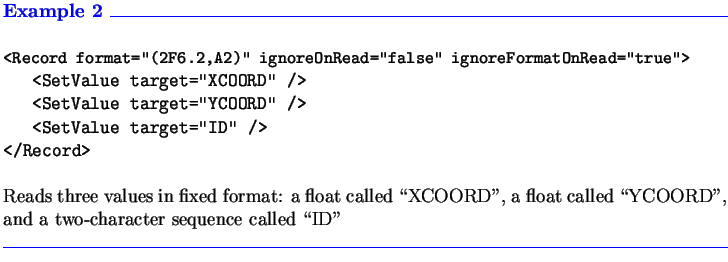

$\parbox{6.3in}{\textcolor{blue} {\textbf{Example 2 \hrulefill}}\\ \... ...'', and a two-character sequence called \lq\lq ID'' \\ \textcolor{blue}{\hrulefill}}$

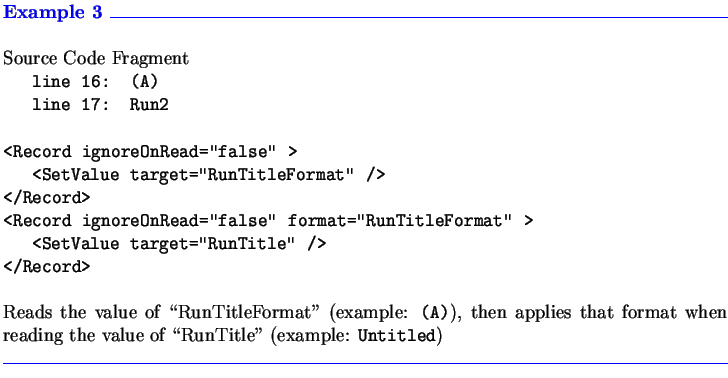

$\parbox{6.3in}{\textcolor{blue} {\textbf{Example 3 \hrulefill}}\\ \... ...e of \lq\lq RunTitle'' (example: \texttt{Untitled}) \\ \textcolor{blue}{\hrulefill}}$
