2.3.1 Overview of the $<$FileStructure$>$ Tag

The FileStructure section defines the process used for reading and writing the file, including the parameters defined in the FileData section (Section 2.2).

This section is declared using the FileStructure element. The FileStructure element has no attributes.

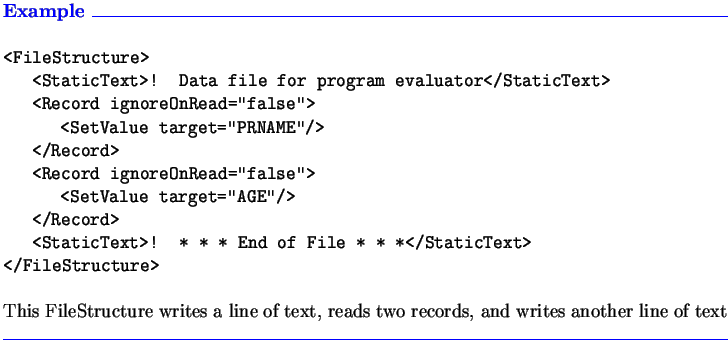

$\parbox{6.3in}{\textcolor{blue} {\textbf{Example \hrulefill}}\\ \pa... ... two records, and writes another line of text \\ \textcolor{blue}{\hrulefill}}$

The FileStructure section must contain one or more structure elements in any order. The structure elements are:

• Record
• Condition
• Loop
• StaticText.

Each of these structure elements must contain one or more operation elements in any order. The operation elements are:

• Separator
• SetValue
• AddValue
• SetDims
• SetSize.

Structure elements are discussed in Sections 2.3.2 through 2.3.5, and operation elements are discussed in Sections 2.3.6 through 2.3.10.
